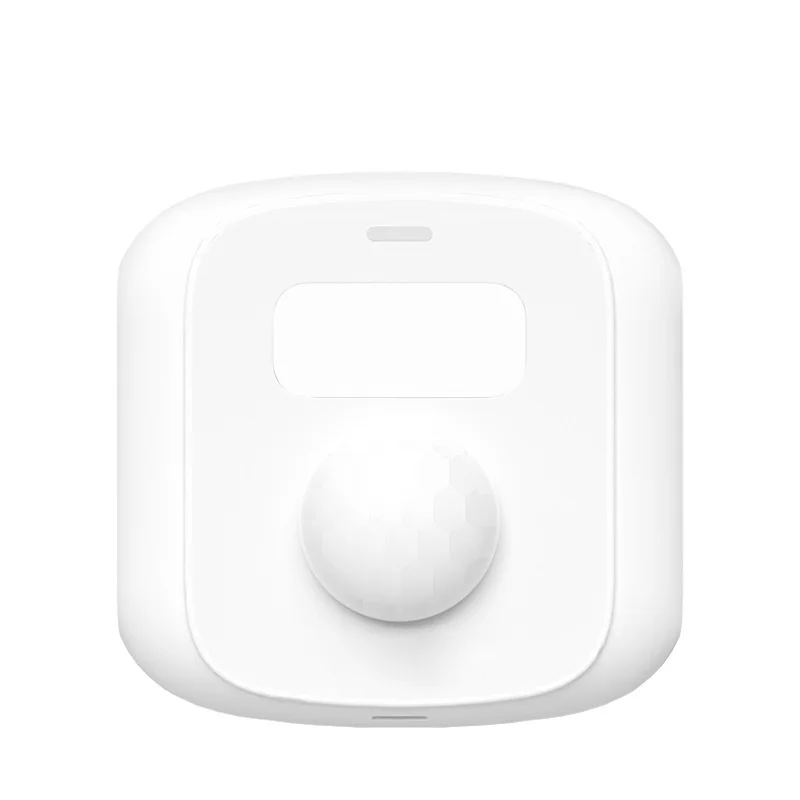

Smart WiFi Motion Sensor – Compact PIR Detector for Home Security & Automation
Core Specifications:
Parameter Specification
Detection Method Passive Infrared (PIR)
Wireless Protocol WiFi 2.4GHz + Zigbee 3.0
Power Supply 2× AA Batteries (8-Month Lifespan)
Detection Range Up to 8m (26ft)
Detection Angle 120° Wide-Angle
Dimensions 51×51×21mm (2×2×0.83")
Mounting Adhesive or Screw Fixing
Key Features:
✅ Intrusion Alerts:
Instant app notifications and audible alarms for unauthorized movement
Ignores pets under 25kg to reduce false triggers
✅ Smart Automation:
Sync with lights, cameras, or alarms (e.g., "Turn on floodlight if motion detected")
Voice control via Alexa/Google Assistant (“Is there motion upstairs?”)
✅ Ultra-Low Power:
0.1W standby consumption | Battery-level alerts via app
Compact design for discreet placement
Technical Certifications:
CE/FCC/RoHS Certified
Applications:
🚪 Home Security: Entryway monitoring, garage alerts
🏢 Office: Energy-saving light control in hallways
🏭 Warehouse: After-hours intrusion detection
Installation Guide:
Attach to wall/ceiling using adhesive or screws
Pair with hub via app (iOS/Android) in 10 seconds
Set sensitivity and automation rules
Package Includes:
1× Motion Sensor Unit
2× AA Batteries
1× Adhesive Pad + Screw Kit
Performance Data:
Metric Value
Response Time ≤1s
Operating Temp -5°C to +60°C
Humidity Range 20%–80% RH
Advanced Functions:
Scene Groups: Link 10+ sensors for zone monitoring
Sensitivity Modes: Adjust detection range (3m–8m)
Vacation Mode: Randomize light automation for added security
Note: Requires 2.4GHz WiFi/Zigbee hub (sold separately). Avoid placement near heat sources or direct airflow. Optimal height: 1.5m above floor.
